Ø4mm interchangeable rods, with lapped measuring end, provide a wide measuring range.
The rod length can be adjusted in 25mm or 1in increments.
With ratchet stop for constant force.
With measuring rod clamp.
With SPC output.
With digit counter.

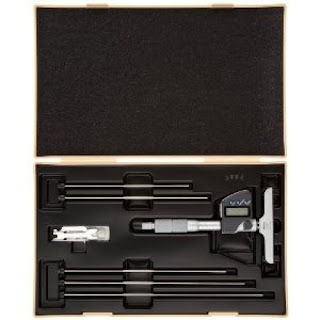

Supplied in fitted plastic case
Technical Data
- Accuracy: ±.00012in±3µmfor micrometer head feed
- ±[.00008 + (.00004xR/3)]in R= max. measuring length (inch) ±(2+L/75)µmfor interchangeable rod, L=Max. measuring length (mm)
- Resolution*: 0.001mm or .00005"/0.001mm
- Graduation**: 0.01mm or .001in
- Flatness of reference face: .00005in for 2.5in/1.3µmfor 63.5mm width base, .00008¡± for 4in/2µm for 101.6mm width base
- Flatness of measuring rod face: 0.3µm
- Parallelism between reference face and measuring rod face: [.00016 + (.00004 x R/2]in R=max. measuring range (inch)
- (4+L/50)µm, L=Max. measuring length (mm) Measuring rod diameter: .157in/4mm
- Display*: LCD
- Battery*: SR44 (1 pc.), 938882
- Battery life*: Approx. 3.5 years under normal use
Function of Digital Model
- Origin-set, Zero-setting, Data hold, Data output, inch/mm conversion (inch/mm models)
- Alarm: Low voltage, Counting value composition error
- Function Lock
- 2 Presets
Optional Accessories for Digital Model
05CZA662: SPC cable with data switch (40in / 1m)
05CZA663: SPC cable with data switch (80in / 2m)
