Spesifications:

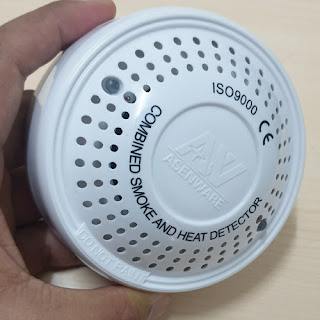

Model AW - CSH831
Operating Voltage Range 9 to 28 VDC Volts Non-Polarized
Standby Current ≤120µA, @24VDC
Maximum alarm current
(LED on)
≤ 15mA @24VDC (1K Ohm current
-limiting resistance)
Operating humidity range ≤95% RH (40°C ± 2°C) Relative
humidity, Non-condensing
Operating temperature
range
-10°C to 50°C (14°F to 122°F)
Smoke Alarm Sensitivity 1.06 ± 26% FT
Fix temperature alarm 57°C (135°F) AIR
Rate of Rise Alarm 7.1°C / 5s AIR
Mating Host AW-CFP2166 fire alarm control
panel
Height 48.2mm installed in Base
Diameter 99.45mm
